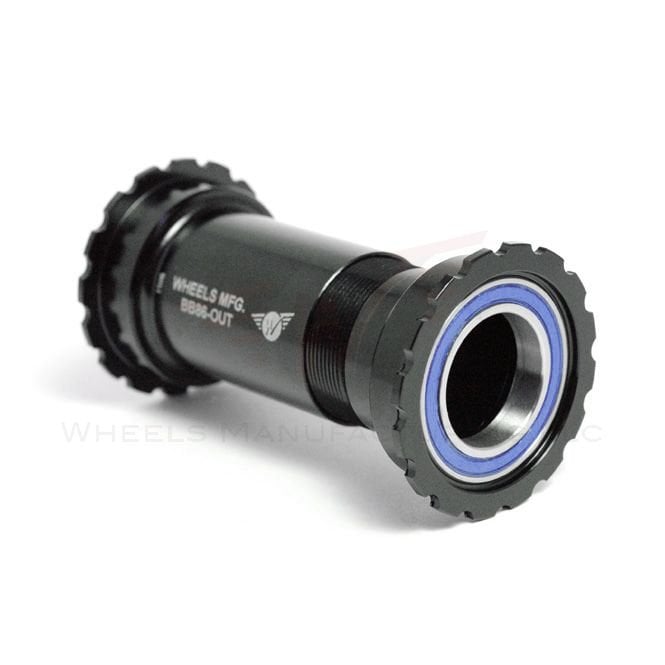

Wheels Manufacturing PF86/92 Out Bottom Bracket ABEC-3 Bearings

Threaded BB for BB86, BB92 and PF90 frames and 24mm [Shimano] or 24/22mm [GXP] diameter spindle cranks. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.

No more creaking. Smooth operation. Fast bearing replacement.

Specification

• Bearings: Enduro ABEC-3
• Bottom Bracket/Frame Interface: BB86, BB92, PF90
• Bottom Bracket Shell Width: 86mm - 92mm
• Bottom Bracket Shell I.D.: 41mm
• Over Bearing Width: 93mm in 86.5mm wide shell*
• Crank Spindle Diameter: Option of 24.00mm or 24/22mm
• Tool Pattern: 48.5mm x 16 notch
• Weight: 106g

* Over Bearing Width Dimensions include supplied silicone dust shields.

Compatibility

Compatible with the following Bottom Bracket Standards (41mm BB shell inner diameter, 86mm - 92mm width):

• BB86
• BB92
• PF90 (Trek)

WMBB86OUTBB - Compatible with 24.00mm spindle diameter cranksets.

WMBB86OUTSRAM7 - Compatible with 22/24mm spindle diameter GXP cranksets.
