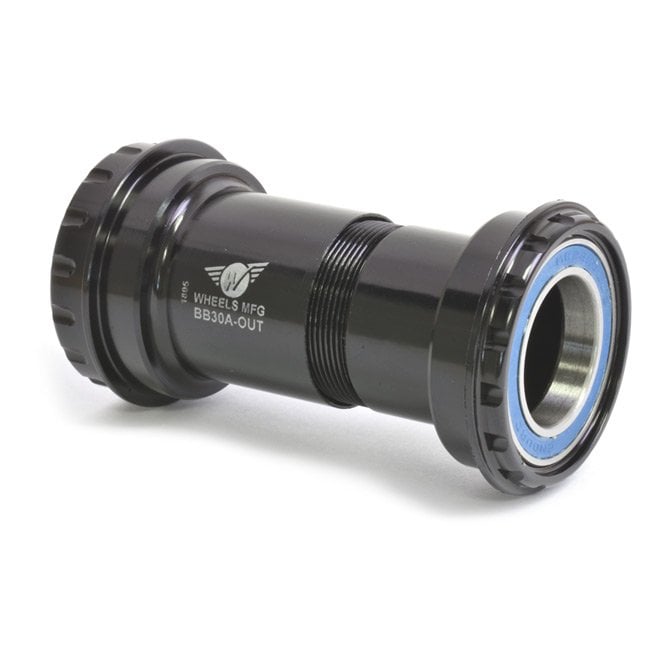

Wheels Manufacturing BB30A To Outboard Angular Contact for 24mm Shimano Cranks

A premium solution for fitting Shimano 24mm spindle chainsets directly into Cannondale BB30A frames, this Wheels Manufacturing bottom bracket replaces adapter-based conversions with a secure thread-together outboard design.

Two precision-machined aluminium cups fit into the 42mm BB30A shell and thread together through the frame, creating a stable assembly that helps minimise movement and the creaking commonly associated with press-fit bottom brackets. Enduro angular contact bearings provide smooth running and are designed to handle both radial and lateral loads, while the replaceable bearing design makes future servicing straightforward.

Key Features

• Converts Cannondale BB30A frames for use with Shimano 24mm spindle chainsets
• Designed specifically for the 73mm-wide asymmetric Cannondale BB30A shell
• Thread-together construction securely connects both bottom bracket cups
• Helps reduce unwanted movement and creaking within the bottom bracket shell
• Precision-machined aluminium cups
• Enduro angular contact bearings
• Outboard bearing position provides the required width for 24mm spindle chainsets
• No separate BB30-to-24mm crank adapters required
• Replaceable bearings simplify future servicing
• Silicone outer dust seals help protect the bearings from contamination
• 44mm 16-notch tool interface
• Black finish

Specifications

Compatibility

Frame: ONLY for Cannondale BB30A frames with a 42mm internal-diameter, 73mm-wide asymmetric bottom bracket shell. BB30A is 5mm wider on the non-drive side than a conventional 68mm BB30 road shell.

Chainset: Compatible with Shimano and other chainsets using a genuine 24.00mm diameter spindle, including Shimano Hollowtech II.

Not compatible with SRAM GXP: SRAM/Truvativ GXP uses a stepped 24/22mm spindle and requires the dedicated Wheels Manufacturing BB30A GXP/SRAM version.

Important FSA note: Some FSA MegaExo crank spindles measure 24.07mm rather than 24.00mm. A 24.07mm spindle is not compatible with the supplied bearings, so the crank spindle should be checked before ordering for an FSA application.

BB30A is not standard BB30 or PF30A. Standard BB30 and PF30A frames require the appropriate bottom bracket for their respective shell dimensions.
