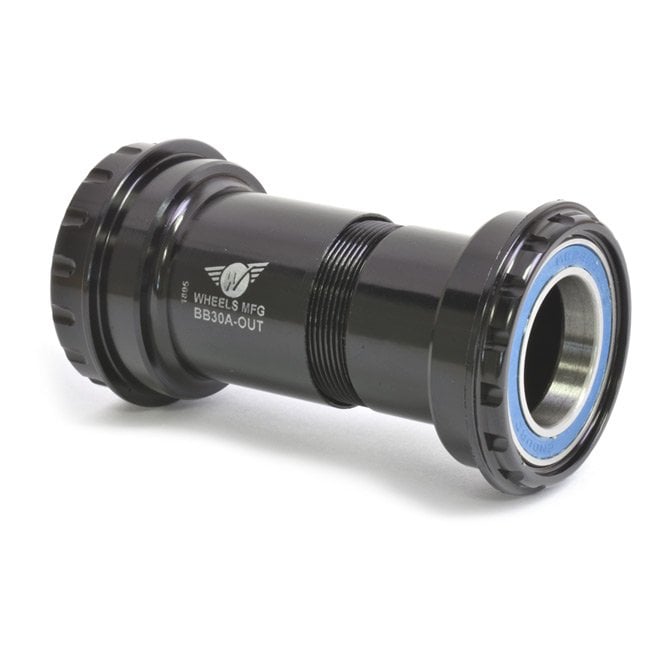

Wheels Manufacturing BB30A To Outboard ABEC-3 Bearings for 24mm Cranks

Wheels Mfg BB30A Outboard ABEC-3 BB – Shimano 24mm Cranks

A straightforward, high-quality solution for fitting Shimano and other 24mm spindle chainsets to Cannondale BB30A frames. This Wheels Manufacturing bottom bracket replaces adapter-based conversions with a complete thread-together outboard bearing system, giving the chainset the correct support while helping eliminate unwanted movement and creaking.

Precision-machined aluminium cups fit directly into the 42mm BB30A shell and thread securely together through the frame. This creates a stable bottom bracket assembly and makes bearing servicing or replacement considerably easier. Enduro ABEC-3 sealed cartridge bearings provide dependable, smooth-running performance for everyday road and gravel use.

Key Features

• Complete bottom bracket for fitting 24mm spindle chainsets to Cannondale BB30A frames
• Designed specifically for the 73mm-wide asymmetric Cannondale BB30A shell
• Thread-together construction securely connects both bottom bracket cups
• Helps reduce unwanted movement and creaking associated with press-fit systems
• Precision-machined aluminium cups
• Enduro ABEC-3 sealed cartridge bearings
• Outboard bearing position provides the required width for 24mm spindle chainsets
• No separate BB30A-to-24mm crank adapters required
• Replaceable bearings simplify future servicing
• Silicone outer dust seals help protect the bearings from contamination
• 44mm x 16-notch tool interface
• Black finish

Specifications

Compatibility

Frame: ONLY compatible with Cannondale BB30A frames using a 42mm internal-diameter, 73mm-wide asymmetric bottom bracket shell. BB30A is Cannondale's asymmetric standard and should not be confused with conventional BB30 or PF30A.

Chainset: Compatible with Shimano Hollowtech II and other chainsets using a genuine 24.00mm diameter spindle.

Not compatible with SRAM GXP: SRAM/Truvativ GXP uses a stepped 24/22mm spindle and requires the dedicated Wheels Manufacturing BB30A 22/24mm SRAM/GXP bottom bracket.

FSA compatibility: Some FSA MegaExo crank spindles measure 24.07mm rather than 24.00mm. A 24.07mm spindle will not fit the supplied ABEC-3 bearings, so the spindle diameter should be checked before ordering for an FSA application.

Not for standard BB30 or PF30A frames. These use different shell dimensions and require the appropriate Wheels Manufacturing bottom bracket for the frame standard.
