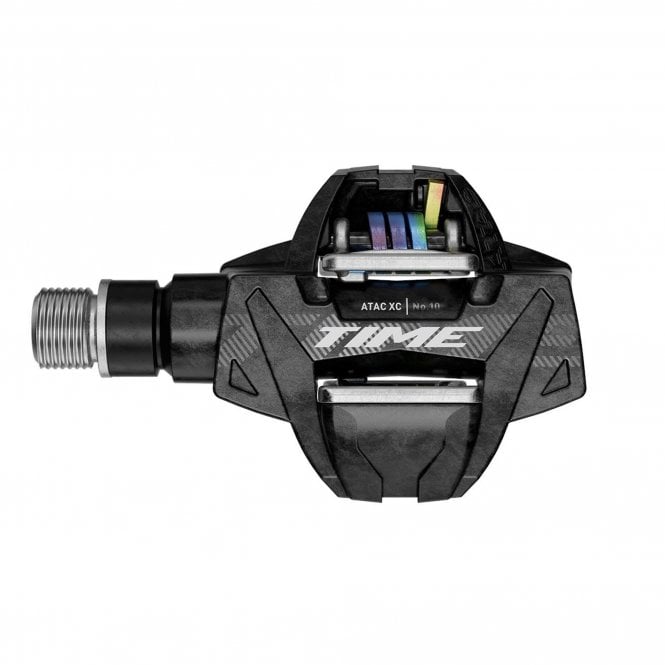

The Time ATAC XC 10 is a competition-weight cross country pedal that pairs a carbon-filled body with a hollow steel axle, coming in at 140g per pedal. Angular and lateral float let the foot move naturally through the stroke, which helps reduce muscle fatigue over a long race.
The ATAC mechanism gives easy, consistent engagement and clears mud and debris every time the rider steps in. Three spring settings adjust release tension, making the pedal equally at home on cross country, gravel and cyclocross courses.
Features
Competition cross country pedal at 140g per pedal
Carbon-filled body with hollow steel axle
Self-clearing ATAC design sheds mud and debris on entry
Three-position spring tension adjustment
Angular and lateral float to reduce strain and fatigue
Release angle of 13° or 17° with the supplied ATAC cleats
54mm spindle-to-crank distance
Compatibility
Fits all two-bolt SPD-pattern off-road shoes
Uses Time ATAC cleats – ATAC Easy and standard ATAC cleats are interchangeable
Standard 9/16 inch x 20 tpi crank thread
Release angle of 13° or 17° with the supplied ATAC cleats, or 10° with ATAC Easy cleats
Not compatible with power meter measurement
Included
Pair of Time ATAC XC 10 pedals
ATAC cleats (13/17°) and fixing bolts
Not Included
ATAC Easy cleats
Cycling shoes
Specifications
Specification
Detail
Intended use
Cross country, cyclocross and gravel
Body
Carbon-filled composite
Axle
Hollow steel
Bearings
Steel
Cleat system
Time ATAC
Cleats supplied
ATAC (13/17°)
Stack height
18.3 mm
Spindle to crank arm
54 mm
Angular float
+/- 5° with float cleats, 0° with fixed cleats
Lateral float
+/- 2.5 mm
Release angle
13° or 17° with ATAC cleats, 10° with ATAC Easy cleats
Release tension
Three spring positions
Thread
9/16 inch x 20 tpi
Power meter compatible
No
Weight
140 g per pedal
Colour
Carbon
A racer’s pedal that still shrugs off a winter of cyclocross.
