SRAM Force XPLR AXS E1 1 x 13s Groupset [UDH]

SRAM Force XPLR AXS E1 is a wireless 1x13-speed gravel groupset built around the Full Mount rear derailleur and a 10-46T XDR cassette. It takes the same gravel-specific architecture as Rival XPLR and adds carbon crank arms, a carbon and aluminium derailleur cage and carbon brake lever blades, saving weight across the build. It is designed for gravel racing, long-distance mixed-surface riding and bikepacking on UDH-equipped frames.

Full Mount Rear Derailleur

• Mounts directly to the frame's UDH interface and centres on the rear axle, with no derailleur hanger to bend or misalign
• No limit screws or hanger variance – setup is quicker and shifting stays precise
• Straight cage design keeps the derailleur clear of the wheel under impact or heavy loading
• Carbon and aluminium cage for strength at low weight
• Clutch keeps the chain secure and quiet on rough surfaces
• Replaceable and serviceable parts

E1 Levers and Brakes

• E1 lever shape shared with RED E1, with a sculpted hood and curved carbon lever blade
• Reduced lever effort makes one-finger braking practical from both the hoods and the drops
• Stiffer Flat Mount callipers for consistent power and control in all conditions
• Levers control both shifting and braking, communicating wirelessly with the derailleur

Carbon Crankset

• Carbon Force XPLR arms are significantly lighter than the aluminium Rival equivalent while staying stiff under load
• Crank boots protect the arm ends from pedal and rock strikes
• DUB Wide spindle optimises the 1x chainline for the 13-speed cassette on frames with longer chainstays
• 8-bolt direct mount interface accepts any SRAM AXS chainring, with or without power meter

13-Speed Gravel Gearing

• XG-1371 10-46T cassette gives a 460% range with close steps where they matter most
• Single chainring keeps the drivetrain simple, light and secure
• Force E1 Flattop chain works with both 12-speed road and 13-speed XPLR systems

AXS-Enabled

• Connects to the SRAM AXS app to customise shift behaviour and monitor battery levels across all components

Compatibility

• Frame: UDH (Universal Derailleur Hanger) interface required – not compatible with frames using a conventional derailleur hanger, and no conversion is available
• Freehub: XDR driver body required
• Bottom bracket: SRAM DUB, frame-specific (not included)
• Brakes: Flat Mount callipers; Centre Lock or 6-bolt rotors as appropriate to the wheels
• Chain: SRAM 12- or 13-speed Flattop road chain only – not compatible with 12-speed Eagle MTB chains

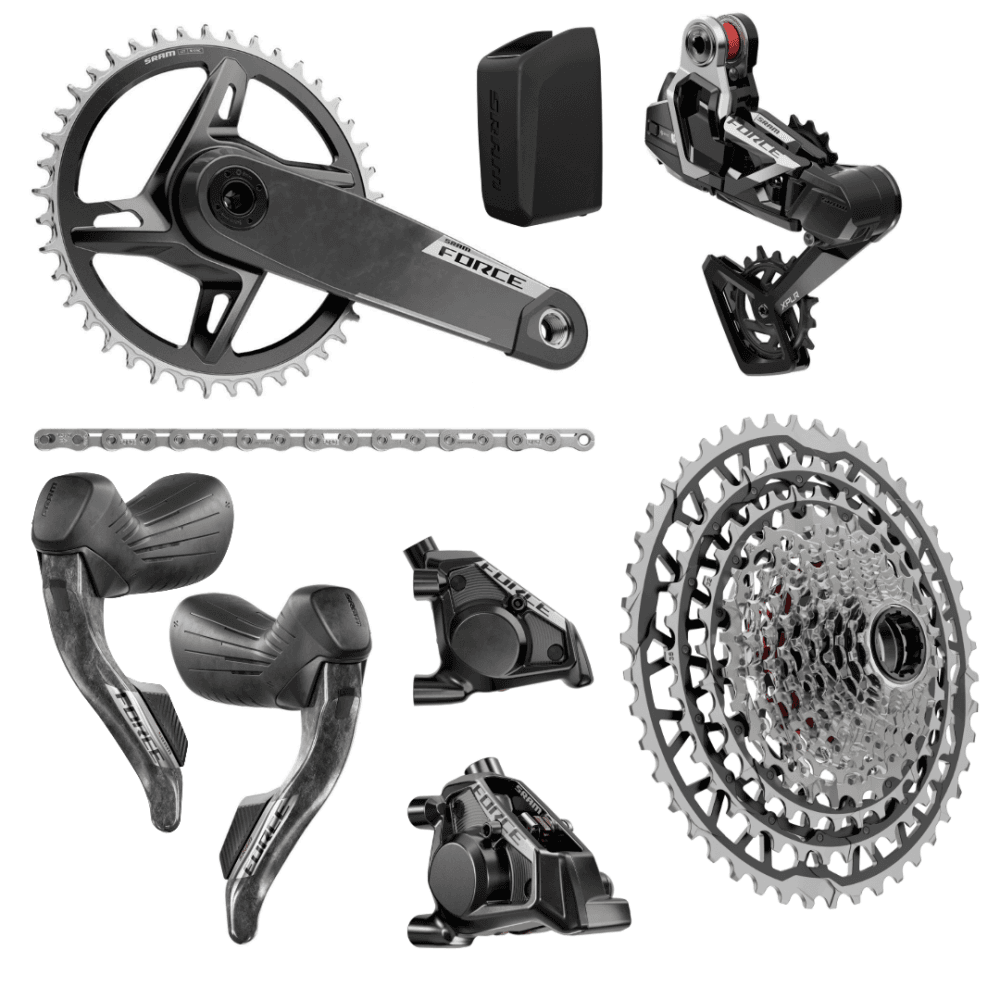

Included

• 1 x pair of SRAM Force eTap AXS E1 shift/hydraulic disc brake levers
• 2 x SRAM Force Flat Mount disc brake callipers with 20 mm hardware
• 1 x 1800 mm and 1 x 950 mm hydraulic hoses (pre-connected to levers and callipers)
• 1 x SRAM Force XPLR E1 DUB Wide 42T 1x crankset
• 1 x SRAM Force E1 Flattop chain, 126 links, PowerLock connector, 12/13-speed
• 1 x SRAM Force XPLR XG-1371 E1 XDR cassette, 13-speed, 10-46T
• 1 x SRAM Force XPLR AXS E1 rear derailleur, 13-speed, 46T maximum sprocket
• 1 x SRAM eTap AXS battery for the rear derailleur
• 1 x SRAM eTap/AXS battery charger and cable

Not Included / Required Separately

• Bottom bracket
• Disc brake rotors (SRAM Paceline Centre Lock rotors available as an option; lockrings not included)
• UDH-equipped frame and XDR freehub body

Specifications

Force XPLR gives the 13-speed Full Mount platform a lighter, carbon-led build without stepping up to RED.
