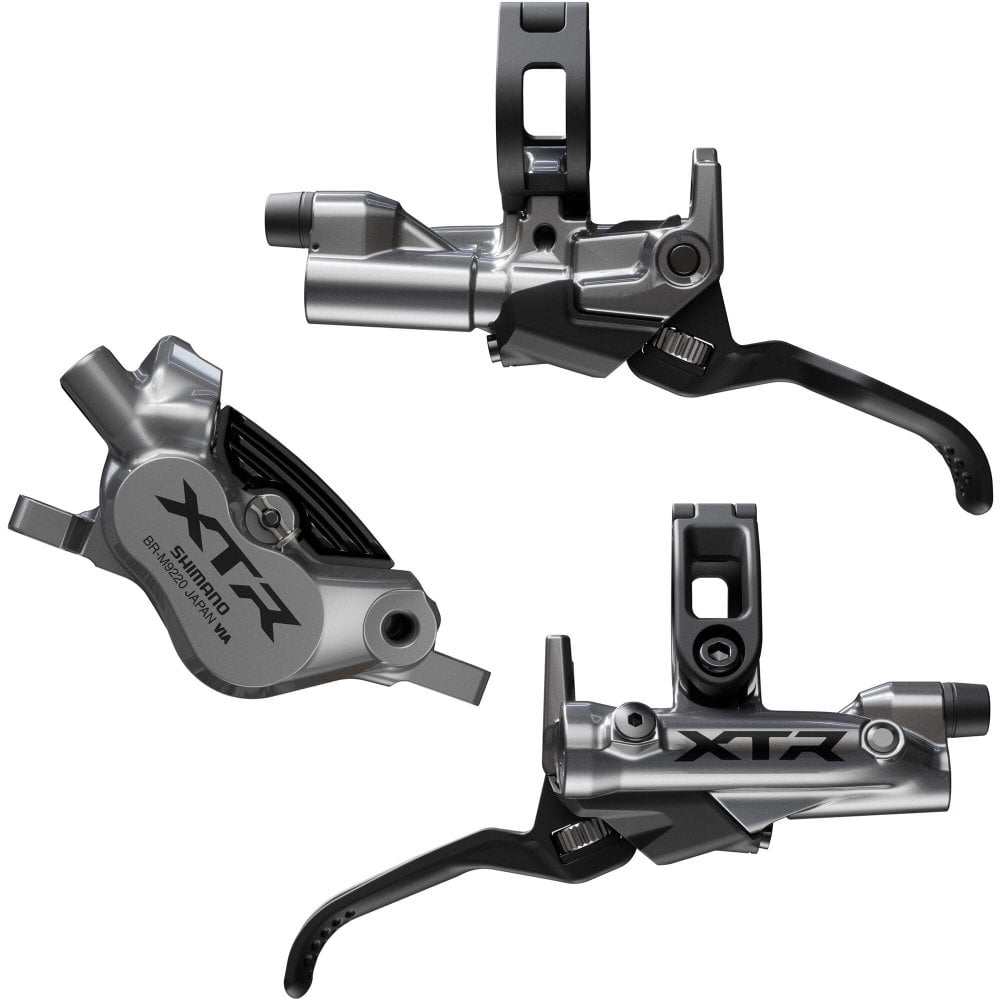

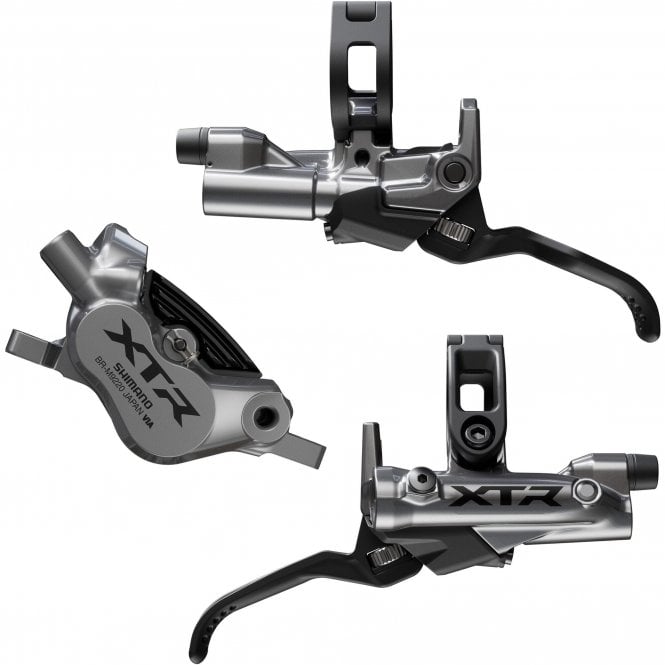

Shimano XTR BR-M9220/BL-M9220 4-Piston Brake Set

The Shimano XTR BR-M9220 caliper and BL-M9220 lever is the brand's hardest-hitting trail and enduro brake set — a ground-up redesign with a new lever architecture, a one-piece four-piston caliper and the long-awaited fix for that wandering bite point. Supplied as a full front and rear pairing, it is built for riders who want race-grade modulation and the kind of late-braking confidence that rewrites lines on the steep stuff.

Engineered for trail and enduro punishment

The BR-M9220 is the strongest stopper in the XTR M9200 family. A one-piece forged caliper body replaces the previous two-piece bolted construction, ramping up stiffness and slicing parasitic flex from the system. Dual-diameter ceramic pistons remain — smaller leading, larger trailing — for progressive engagement that builds power without snatching the rotor. Translation: enormous bite when wanted, surgical control when it isn't.

The new ERGO FLOW lever, explained

The BL-M9220 is where the biggest shift lives. The master cylinder now pulls rather than pushes, allowing the lever pivot to sit 5 mm closer to the handlebar. The blade is swept upward by five degrees so it follows the natural arc of an index finger through the stroke, instead of curling back into the grip at the bite point. A redesigned SERVO WAVE cam ramps power smoothly and fast, while tool-free reach adjust and free stroke adjustment let it be tuned trailside without a single Allen key in sight.

Low-viscosity mineral oil — bite point sorted

Shimano's reformulated low-viscosity mineral oil flows consistently across a far wider temperature range, which is the headline fix for the inconsistent bite point that has nagged previous-generation XTR brakes. Updated seals and a redesigned bleed port complete the hydraulic overhaul. The result is a lever feel that lands in the same place on the first run of the day, the fifth lap of a bike park session and the bottom of the longest descent on the map.

Important note: the new low-viscosity oil is not backward compatible with previous Shimano brakes, and previous Shimano mineral oil must not be used in the M9220. The existing TL-BT03/TL-BR002 bleed kit still works for the procedure itself.

Silent power, finally

A redesigned pad and mount interface kills the rattle that has haunted finned Shimano pads for years. Oval mounting hardware damps vibration at the pad ears, so technical chatter stays at the rotor and out of the cockpit. Supplied P04C-MF metal pads are Ice-Tech finned for fade resistance on long descents, and remain compatible with the wider Shimano pad range.

Key features

• One-piece four-piston caliper — stiffer, lighter and more responsive than the previous bolted design
• Dual-diameter pistons — progressive power build for modulation that scales with rider input
• ERGO FLOW lever architecture — pull-style master cylinder with pivot moved 5 mm closer to the bar
• 5-degree upswept lever blade — tracks the natural arc of the index finger through the stroke
• Redesigned SERVO WAVE cam — smoother, faster power ramp without friction spikes
• Tool-free reach adjust and free stroke adjust — fine-tune lever feel without removing gloves
• Low-viscosity mineral oil — consistent bite point across the full operating temperature range
• Updated seals and bleed port — cleaner bleeds, more reliable hydraulic performance
• Silent pad and mount interface — oval hardware damps rattle on rough terrain
• Ice-Tech P04C-MF metal pads included — fade-resistant finned construction

Technical specification

• Caliper: Shimano XTR BR-M9220, four-piston, one-piece body
• Lever: Shimano XTR BL-M9220 with SERVO WAVE and ERGO FLOW design
• Caliper mount: Post Mount (PM)
• Compatible rotor sizes: 160 mm, 180 mm, 203 mm, 220 mm
• Recommended rotors: Shimano RT-CL900 or RT-MT905 (Ice-Tech Freeza)
• Recommended hose: Shimano SM-BH90-SBM
• Hose joint: Banjo at caliper, straight at lever
• Brake fluid: Shimano low-viscosity mineral oil (not backward compatible)
• Reach adjust: Tool-free dial
• Free stroke adjust: Yes
• Mounting: Open clamp band
• Pads supplied: P04C-MF Ice-Tech finned metal
• Discipline: Trail, enduro, e-MTB

What's in the box

• 1 x BR-M9220 front caliper with P04C-MF metal pads, pre-bled
• 1 x BL-M9220 left-hand (front) lever assembly
• 1 x BR-M9220 rear caliper with P04C-MF metal pads, pre-bled
• 1 x BL-M9220 right-hand (rear) lever assembly
• 2 x SM-BH90-SBM hydraulic hose
• Olives, barbs and bleed fittings

Rotors and bleed kit sold separately. For UK-stocked Ice-Tech Freeza rotors, the Centerlock RT-CL900 and 6-bolt RT-MT905 are the recommended pairings to extract the full performance envelope of the M9220 system.
