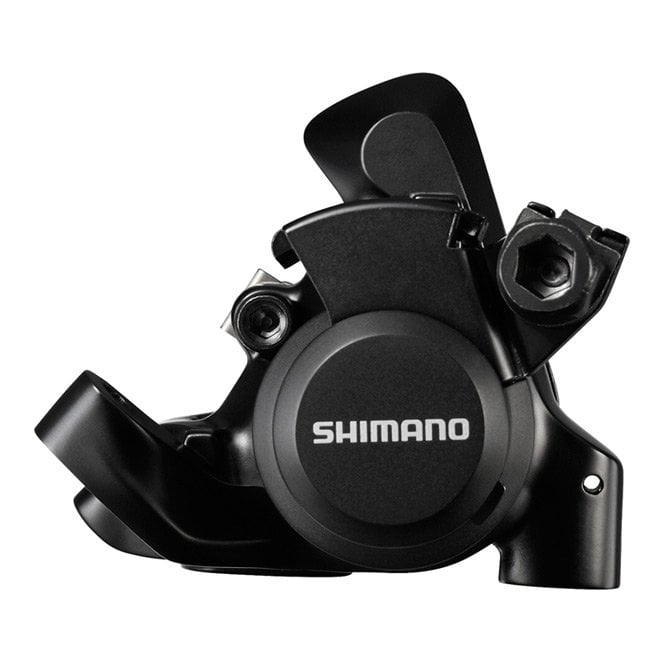

Shimano Road BR-RS305 Flat Mount Disc Brake Calliper

Shimano Road BR-RS305 Flat Mount Mechanical Disc Brake Caliper – Front

Bring confident, consistent braking to your road or cyclocross bike without the complexity of hydraulics. The Shimano BR-RS305 is a flat mount, cable-operated disc brake caliper designed to work seamlessly with your existing compatible Shimano road brake levers or STIs, giving you disc brake power with an easy upgrade path.

Perfect for modern flat mount forks, it delivers powerful, controlled braking in all conditions in a lightweight, low-profile package.

Key Features

• Mechanical (cable) disc brake – no hydraulic fluid or bleeding required
• Road / CX upgrade friendly – works with compatible Shimano road brake levers and STIs
• Flat mount front caliper – for flat mount forks, with adapter for 140 mm and 160 mm rotors
• Increased pad–rotor clearance – helps reduce unwanted rotor rub and drag
• Shim-less mounting system – quick, precise installation and setup
• Adjustable pad clearance – easy fine-tuning for perfect lever feel
• Lightweight, rigid construction – forged one-piece alloy body for strength and low weight
• Long arm design – maximised power and modulation, optimised for New Super SLR brake levers
• Optimised for Ice Tech rotors – for consistent braking and improved heat management
• High-performance pads included – resin compound aluminium radiation fin pads reduce brake surface temperature by up to 50°C
• Rotor compatible – suitable for both Centre-Lock and 6-bolt rotors

Technical Details

• Model: Shimano BR-RS305
• Mount type: Flat mount (front)
• Actuation: Mechanical (cable-operated)
• Recommended rotor sizes: 140 / 160 mm (with supplied adapter)
• Pad type: Resin compound pad with aluminium cooling fins (radiation fin)
• Construction: Forged one-piece alloy caliper body
• Recommended rotors: Shimano Ice Tech series
• Rotor interface compatibility: Centre-Lock and 6-bolt

Included in the box

• 1 x Shimano BR-RS305 flat mount front disc brake caliper
• 1 x Set of resin compound aluminium finned pads (pre-installed)
• Flat mount adapter (for 140 / 160 mm configuration)
• Mounting hardware and shim-less brackets

This ready-to-fit caliper is ideal for riders who want the control and consistency of disc brakes using their existing mechanical road levers, with easy setup and excellent heat management for long descents and demanding conditions.
