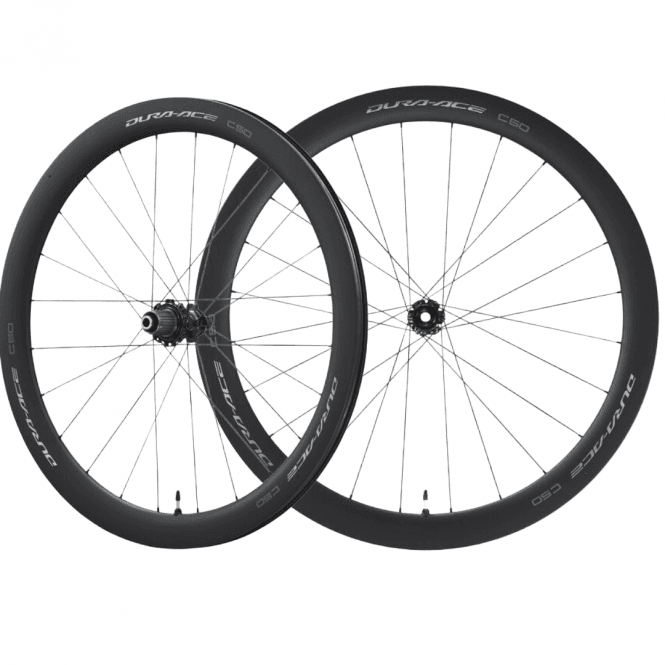

Shimano Dura-Ace R9270 C50 TL Disc Carbon Wheelset

Shimano WH-R9270-C50-TL Dura-Ace Center Lock Disc Carbon Wheelset

The ultimate 50 mm all-round race wheel from Shimano Dura-Ace.

The Shimano WH-R9270-C50-TL wheelset is engineered for elite road racing, fast endurance riding, and triathlon. Designed as the perfect match for Dura-Ace R9200 12-speed groupsets, it combines wind-tunnel-tested aerodynamics, low weight, and outstanding drivetrain efficiency in a tubeless-ready carbon wheelset.

With a 50 mm deep D2 rim profile, modern 21 mm internal width, and Shimano’s Direct Engagement freehub, the C50 delivers confident handling, rapid acceleration, and exceptional stability across a wide range of conditions.

Highlights

• 50 mm D2 carbon rims optimised for frontal and crosswinds
• Tubeless-ready (TL/UST) for lower rolling resistance and improved comfort
• Direct Engagement freehub for immediate power transfer and increased stiffness
• OPTBAL 2:1 rear lacing for balanced spoke tension and durability
• E-Thru 12 mm thru-axle hubs for high torsional rigidity
• Precision cup & cone bearings for smooth, long-lasting performance
• Compatible only with Shimano Road 12-speed cassettes

Product Details

The WH-R9270-C50-TL sits at the sweet spot between lightweight climbing wheels and deep-section aero rims. Shimano’s D2 rim shape reduces aerodynamic drag at yaw angles between 0–15°, while the wide rim bed improves tyre support and cornering confidence.

The 21 mm internal width is optimised for modern road tyres from 25–32 mm, making this wheelset equally suited to race-day speed or high-performance endurance setups. Tubeless compatibility further enhances efficiency, grip, and puncture resistance.

At the hub, Shimano’s Direct Engagement freehub uses a large ratchet contact surface to maximise drivetrain stiffness and efficiency under load. Combined with the OPTBAL rear lacing pattern and E-Thru thru-axle system, the result is a wheelset that feels fast, stable, and precise in every riding scenario.

Specifications (Overview)

• Wheel Size: 700C / 28"
• Rim Depth: 50 mm
• Rim Width: 21 mm internal / 28 mm external
• Spokes: 24 front / 24 rear
• Axles: Front 12×100 mm / Rear 12×142 mm
• Brake Type: Center Lock Disc
• Weight: 1461 g (wheelset, tubeless tape installed)

Box Contents

• Shimano Dura-Ace WH-R9270-C50-TL wheelset (front & rear)
• Tubeless rim tape (pre-installed)

A race-ready carbon wheelset balancing aerodynamics, low weight, and precision—pure Dura-Ace performance.
