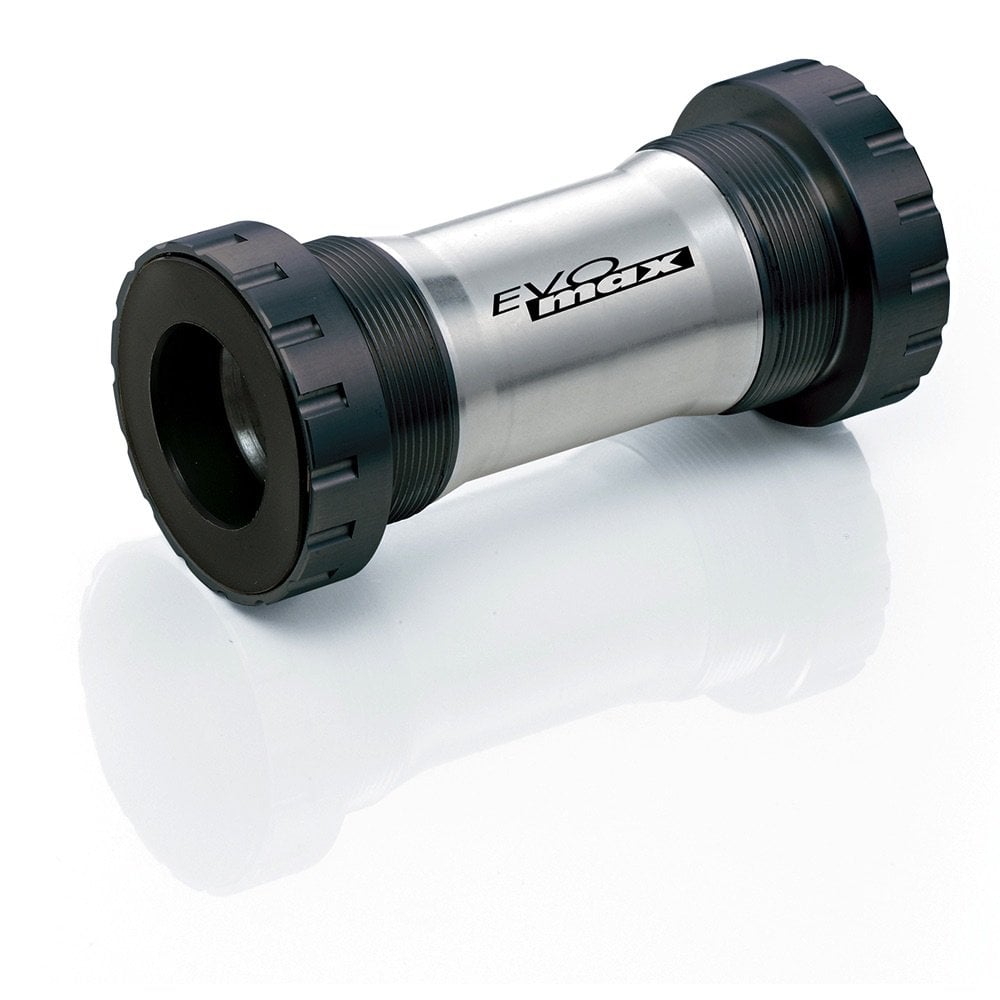

Miche Evo Max Bottom Bracket - BSA

Miche Evo Max MCBB200 BSA 24mm Bottom Bracket – 68mm

Designed to connect a compatible 24 mm Miche chainset with a conventional BSA threaded frame, the Evo Max MCBB200 provides a stiff, accurately aligned foundation for efficient road and track drivetrains.

The outboard bearing arrangement supports the chainset spindle across a wide stance. This helps limit unwanted movement under load, maintaining consistent power transfer during hard accelerations, climbing and high-cadence riding.

CNC-machined 7075-T6 aluminium cups provide the strength required for secure threaded installation without unnecessary weight. Sealed cartridge bearings protect the internal bearing surfaces against water and contamination, supporting smooth rotation with reduced maintenance.

This version is specifically designed for a 68 mm BSA threaded bottom bracket shell. Frame thread, shell width and chainset requirements must all be confirmed before ordering.

Features

• Outboard bearing layout provides stable support for compatible 24 mm chainset spindles.
• CNC-machined 7075-T6 aluminium cups combine accurate fitment with low weight.
• Sealed cartridge bearings protect against water, dirt and drivetrain contamination.
• BSA threaded construction allows straightforward installation, servicing and replacement.
• Wide bearing placement helps maintain drivetrain stiffness under pedalling load.
• Developed for compatible Miche road and track chainsets using a 24 mm spindle.

Compatibility

Compatible with:

• Frames with a 68 mm BSA threaded bottom bracket shell.
• Frame threads measuring 1.370 × 24 TPI.
• Compatible Miche chainsets using a 24 mm spindle and requiring an Evo Max Bottom Bracket.

Compatibility must not be determined from spindle diameter alone. Fitment with Shimano Hollowtech II or other third-party 24 mm chainsets should be verified against the chainset manufacturer's dimensional requirements.

Specifications

Technical Notes

• Installation requires a compatible 44 mm, 16-notch external Bottom Bracket tool.
• The frame threads should be clean, correctly prepared and free from damage before installation.
• Observe the different tightening directions used by the drive-side and non-drive-side BSA cups.
• Install and tighten the Bottom Bracket in accordance with Miche's instructions.
• Professional installation is recommended where frame or chainset compatibility is uncertain.
